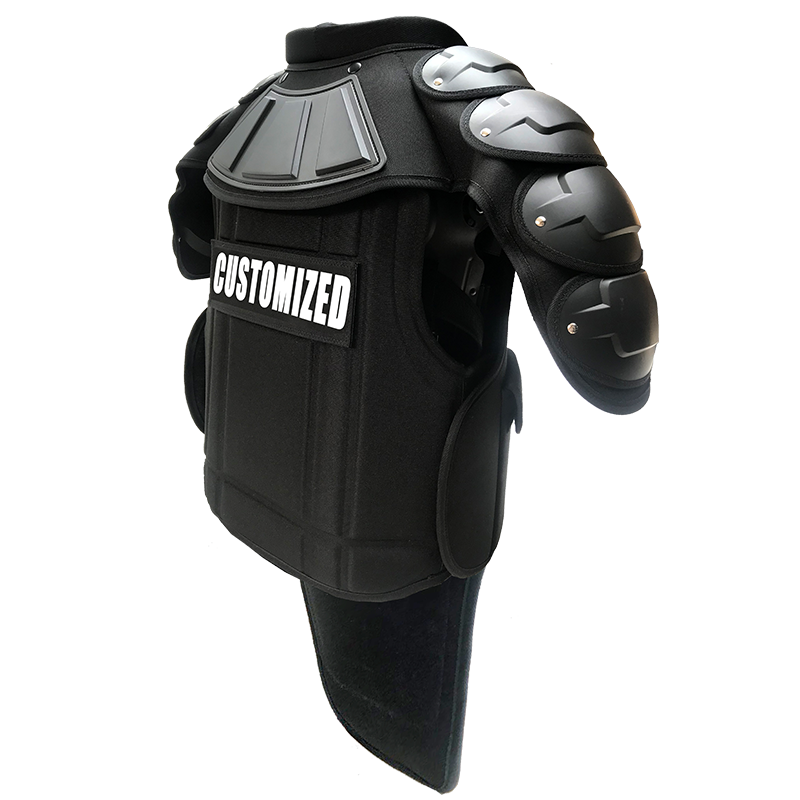

1. Upper body part (front chest, back, shoulder pads, crotch pads (customizable and removable models))
2. Elbow protector, arm protector

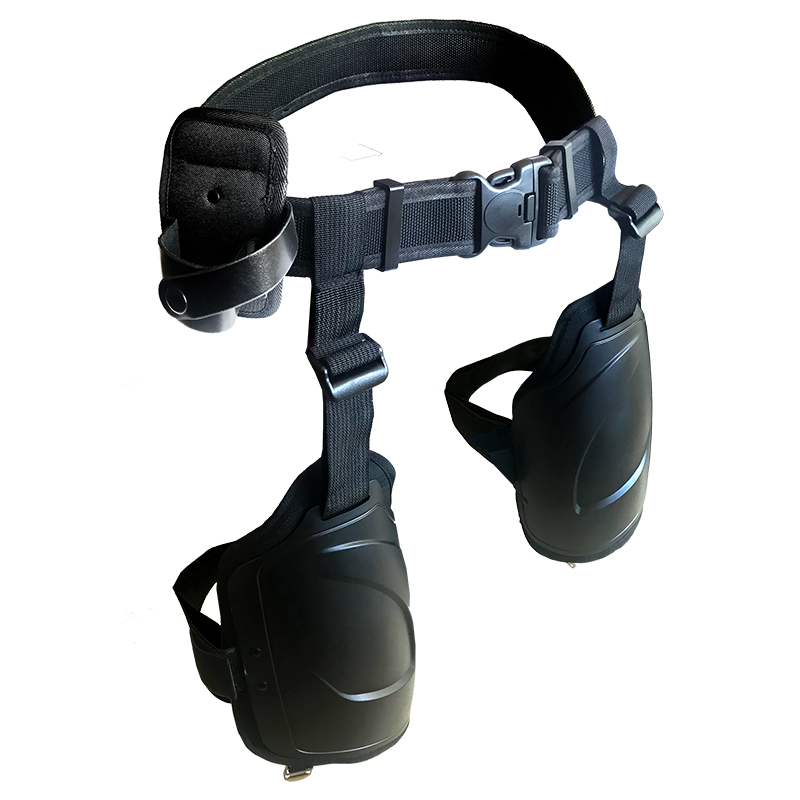

3. Belt, thigh protector

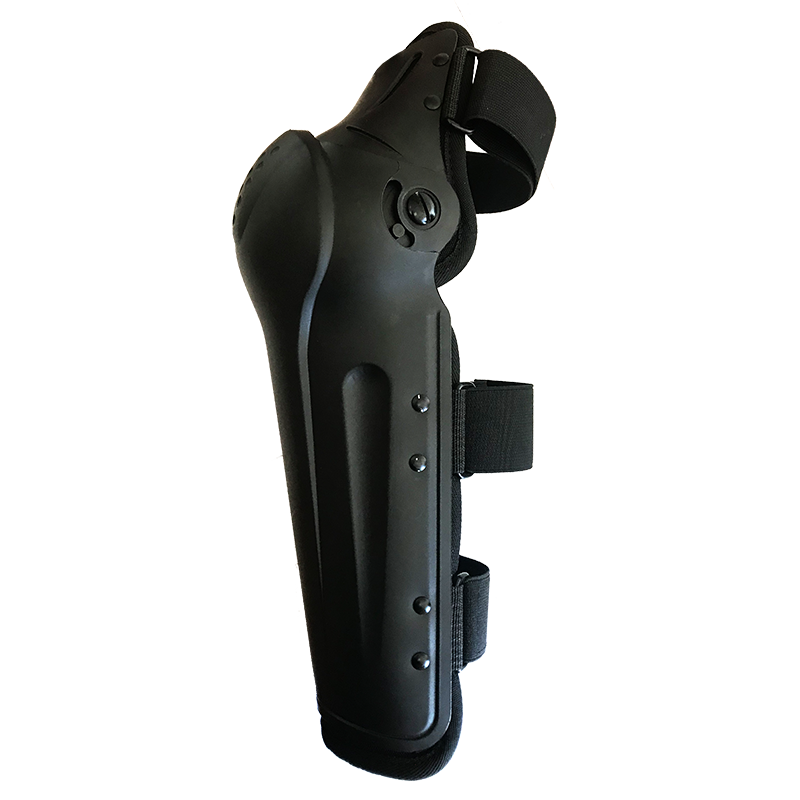

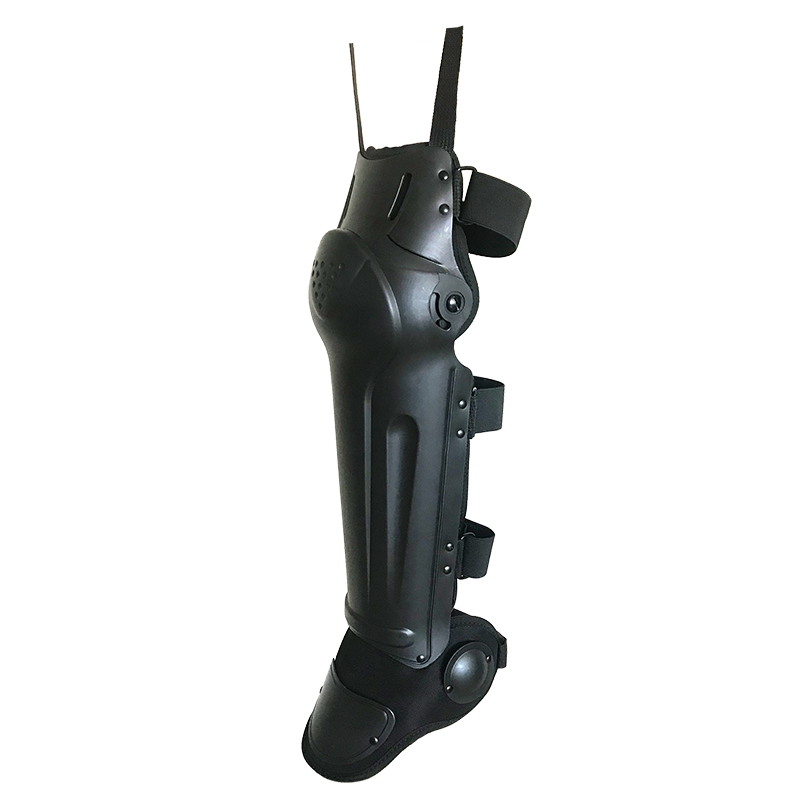

4. Knee pads, calf pads, foot pads
5. Can add neck protector
6. Gloves
7. Handbag
The chest, back and groin protector are composed of Buffer layer and protective layers, which is made of 2.4mm hard military standard alloy plate.The rest of the parts are made of 2.5mmPC engineering plastics and soft energy absorbing materials.
Polyester mesh lines inside the protector which offers comfort and breathability for long term wear.
Reflective Name ID labels can be attached to the front panel for identification (Customized) .
Each piece of the suit fastens and adjusts quickly with adjustable straps fasten with durable nylon elastic and Velcro which allows each individual a custom fit.
One size fit
Measurements by chest size:
Medium/Large/X-Large: chest size 96-130cm
Carry Bag
Normal: 600D Polyester, Total Dimensions 57cmL*44cmW*25cmH
Two Velcro storage compartments in the front of the bag
Front of the bag have place for personal ID card
1280D Polyester, Total Dimensions 65cmL*43cmW*25cmH
Front of the bag have multi function pouches
Comfortable padded shoulder strap and Bag handle
Front of the bag have place for personal ID card
PERFORMANCE DETAILS | PACKING |
High Quality: (Could be Customized) Impact resistant:120J Strike Energy Absorption:100J Stab Resistant:≥25J Temperature:-30℃~55℃ Fire resistant: V0 Weight:≤ 7kg |
1set/CTN, CTN size (L*W*H): 65*45*25 cm, Gross weight: 9kg |
Main parameters | Indicator Requirements | |
Protection area | ≥0.7㎡ | |
Impact resistance | ≥120J | |
Percussion energy absorption performance | ≥100J | |
Anti-stab performance | ≥24J | |
Nylon buckle fastening strength | Initial | ≥14.00N/cm2 |
Clutching 5000 times | ≥10.5N/cm2 | |
Tear strength of nylon buckle | ≥1.6N/cm2 | |
Strength of snap connection | >500N | |
Connection strength of connection tape | >2000N | |
Flame retardant performance | Continued burning time≤10s | |
Climate and environmental adaptability | -30°C~+55° | |
Storage life | ≥5 Years |
